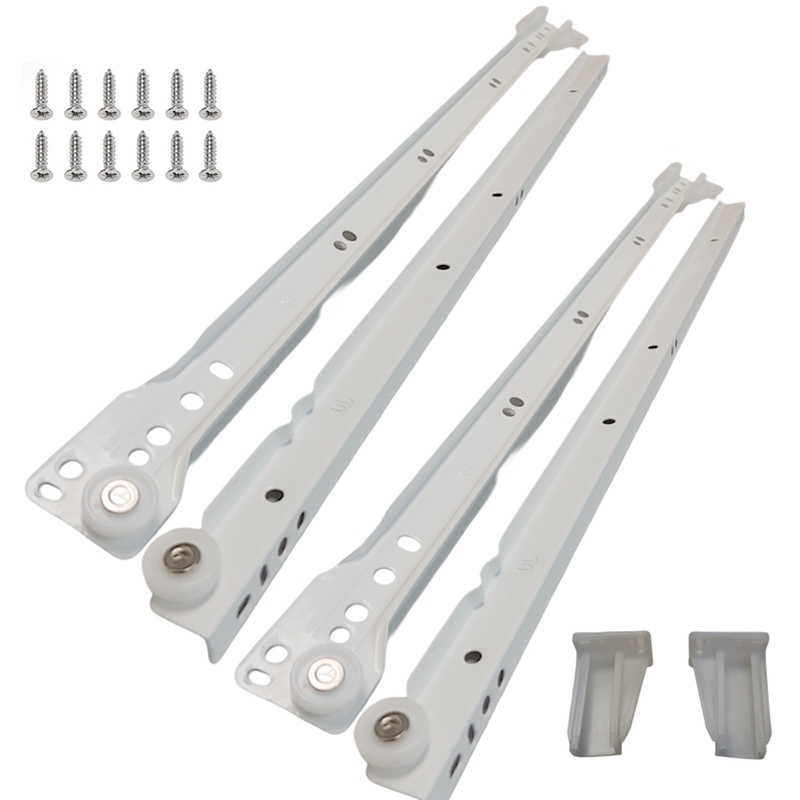

22 Inch White Euro Slides | Pack of 2 | Face-Frame and Frameless Cabinets | 75lbs Capacity Cold Rolled Steel | Powder Coated | Includes Rear Brackets and Screws | 4000-22-1WT
Original price was: $19.86.$7.45Current price is: $7.45.
Choose Length by Drawer Box and not Cabinet Depth
22 Inch Epoxy Drawer Slides – White Euro Slide
Epoxy Coated Drawer Slides
Length: 22 Inch | Width: 32mm | Case Quantity: 25 | Case Weight: 26.7 lbs.
How to Choose the Right Size

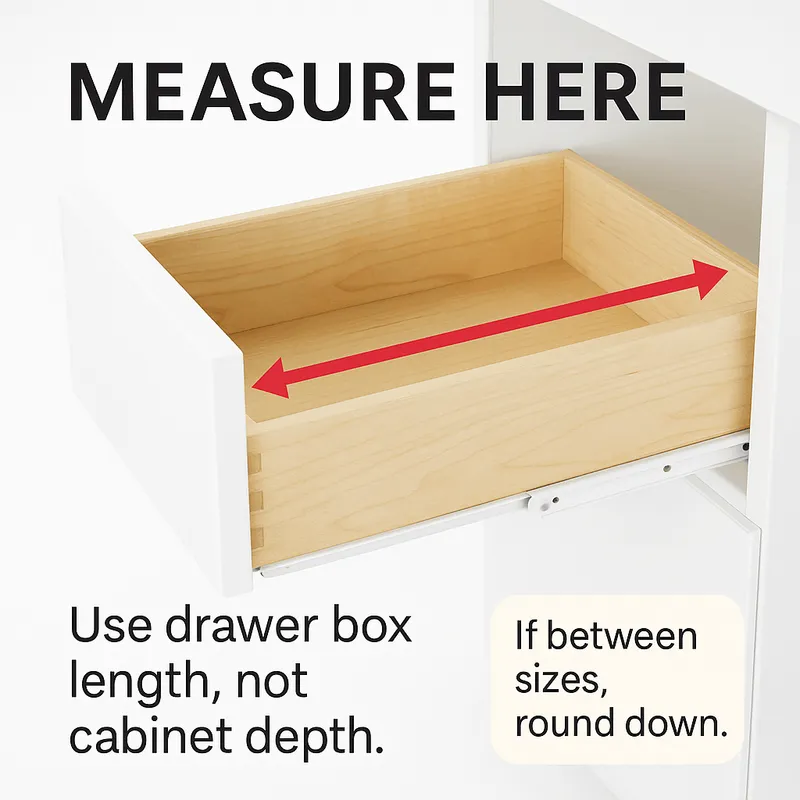

- Measure the length of your drawer box (front to back, not cabinet depth).
- Pick slide length ≤ drawer length (if between sizes, select the next shorter).

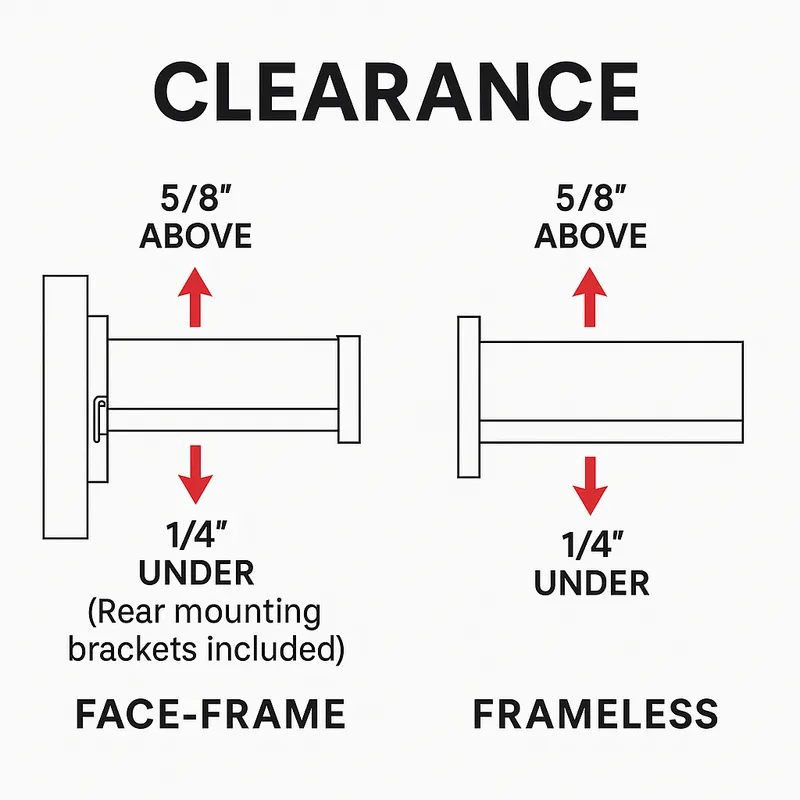

- Clearance needed: ½″ on each side; ¼″ under and ⅝″ above (Euro slide typical).
- Works with face-frame (rear brackets included) & frameless cabinets.
- Quick Size Table — Drawer Box Length → Recommended Slide.
See the table structured below
| Drawer Box Length (front-to-back) | Recommended Slide |
| 10″–10⅞″ | 10″ |
| 12″–12⅞″ | 12″ |
| 14″–14⅞″ | 14″ |
| 16″–16⅞″ | 16″ |
| 18″–18⅞″ | 18″ |
| 20″–20⅞″ | 20″ |
| 22″–22⅞″ | 22″ |
| 24″–24⅞″ | 24″ |
How to use the Table above
Measure the drawer box length (not cabinet depth); choose the longest slide that’s ≤ your measurement—if the exact length isn’t sold (e.g., only even sizes), round down to the next shorter available size.
Crafted from premium, high-quality materials to ensure long-lasting durability and reliable performance, it is ideal for heavy-duty applications where strength and stability are essential. Designed to support a load capacity of up to 75 lbs.
It features a straightforward mounting process with pre-drilled holes, allowing for quick and hassle-free setup. It is perfect for both DIY enthusiasts and professionals looking for a smooth installation experience.
These drawer slides are constructed from durable cold-rolled steel, ensuring long-lasting strength and reliable performance. They are finished with an epoxy powder coating for added protection against wear, corrosion, and daily use.
These slides are designed with multiple mounting holes and offer flexible installation options for various drawer sizes and configurations. Featuring a 3/4 extension design and a double stopper mechanism for added safety and stability during use.
FAQ
Q: My cabinet is 22″ deep but my drawer is 20″- which slide?
A: 20″ (cabinet depth can be longer; a gap behind is normal).
Q: Do I need special parts for a face-frame cabinet?
A: Use the included rear brackets/sockets; see diagram.
Q: Minimum clearances?
A: ½″ per side; see diagram/manual.
| Length |
22 Inch |
|---|---|
| Width |
32mm |
| UOM |
Set |
| Case Quantity |
25 |
| Case Weight |
26.7 lbs |
